Sloping Driveways and How to Install Automated Gates on Uneven London Terrain

Understanding Sloping Driveways in London

London's varied terrain, with sloping driveways common across many boroughs, presents unique challenges for driveway gate installations requiring specialised engineering. These gradient driveways often feature inclines that demand custom solutions for automated gates. Property owners face issues like uneven ground and soil movement when planning installations.

Clay soils dominate much of the city, leading to ground shifts that affect foundation preparation for gates. Freeze-thaw cycles exacerbate instability on sloped surfaces, causing cracks in concrete footings. Planning restrictions in conservation areas add layers of complexity to gate automation projects.

Automated gates on uneven terrain need slope compensation features, such as hydraulic gates or trackless designs. Engineers recommend geotechnical assessments before work begins. Proper drainage considerations prevent water pooling, which worsens erosion on hilly landscapes.

Examples include swing gates with heavy duty hinges for incline gates, or sliding gates suited to steeper slopes. Local contractors use laser levelling and inclinometers for precise level mounting. These steps ensure smooth operation and compliance with UK regulations.

Common Terrain Challenges

London's postcodes like SE23 Forest Hill feature average slopes that cause gate misalignment issues during installations on sloping driveways. Gradient variations from steep to moderate require custom fabrication for automated gates. Urban obstructions often complicate the process.

• Steep gradients demand slope adjustment mechanisms like pivot arms on swing gates.
• Trees or walls near the driveway limit space for gate motors and automation systems.
• Sight line restrictions affect visibility for drivers, especially on sloped surfaces.
• Vehicle turning radius needs careful planning to accommodate large vehicles or emergency access.

Ordnance Survey slope maps help identify risks before driveway installation. For instance, cantilever gates work well where space is tight. Surveyor tools ensure anchor points remain secure on uneven ground.

Civil engineering solutions, such as terracing or retaining walls, address these terrain challenges. Landscape architecture integrates perimeter fencing with gates for cohesive driveway security. Professional installers check for obstructions during site visits.

Soil and Weather Factors

London's clay soils, known for high shrink-swell potential, combined with heavy rainfall create foundation instability risks for sloping installations of automated gates. Ground movement threatens structural support over time. Weatherproofing becomes essential for longevity.

Freeze-thaw cycles lift concrete footings, while acidic rainfall corrodes metal components. Experts recommend soil stability testing to guide reinforcement. Powder coating or stainless steel gates resist these elements.

• Conduct Dutch Cone Penetrometer testing to measure soil strength.
• Perform percolation tests to assess drainage on uneven terrain.
• Install 16mm rebar at 200mm centres in footings for added strength.

Practical steps include excavation, backfill, and compaction before pillar construction. Permeable paving manages surface runoff and flood prevention. Maintenance tips involve seasonal checks for frost heave or ground movement.

Planning Automated Gates on Uneven Ground

Proper planning cuts down on installation failures for automated gates on slopes. Experts recommend professional surveying to handle sloping driveways and uneven terrain in London. This step ensures compatibility with gradients over 1:10 and checks local planning permissions for gates wider than 2.5 metres.

Mandatory site surveys map out terrain challenges like gradient driveways and soil stability. London building codes often require approvals for driveway gates in urban areas. Focus on gate type selection early to match hilly landscapes.

Consider foundation preparation and concrete footings during planning. Drainage considerations prevent water buildup on sloped surfaces. Professional input avoids common pitfalls in gate installation on inclines.

Integrate automation systems with safety features like sensors. Plan for access control and visibility from the road. This approach suits residential driveways and commercial properties alike.

Site Assessment Essentials

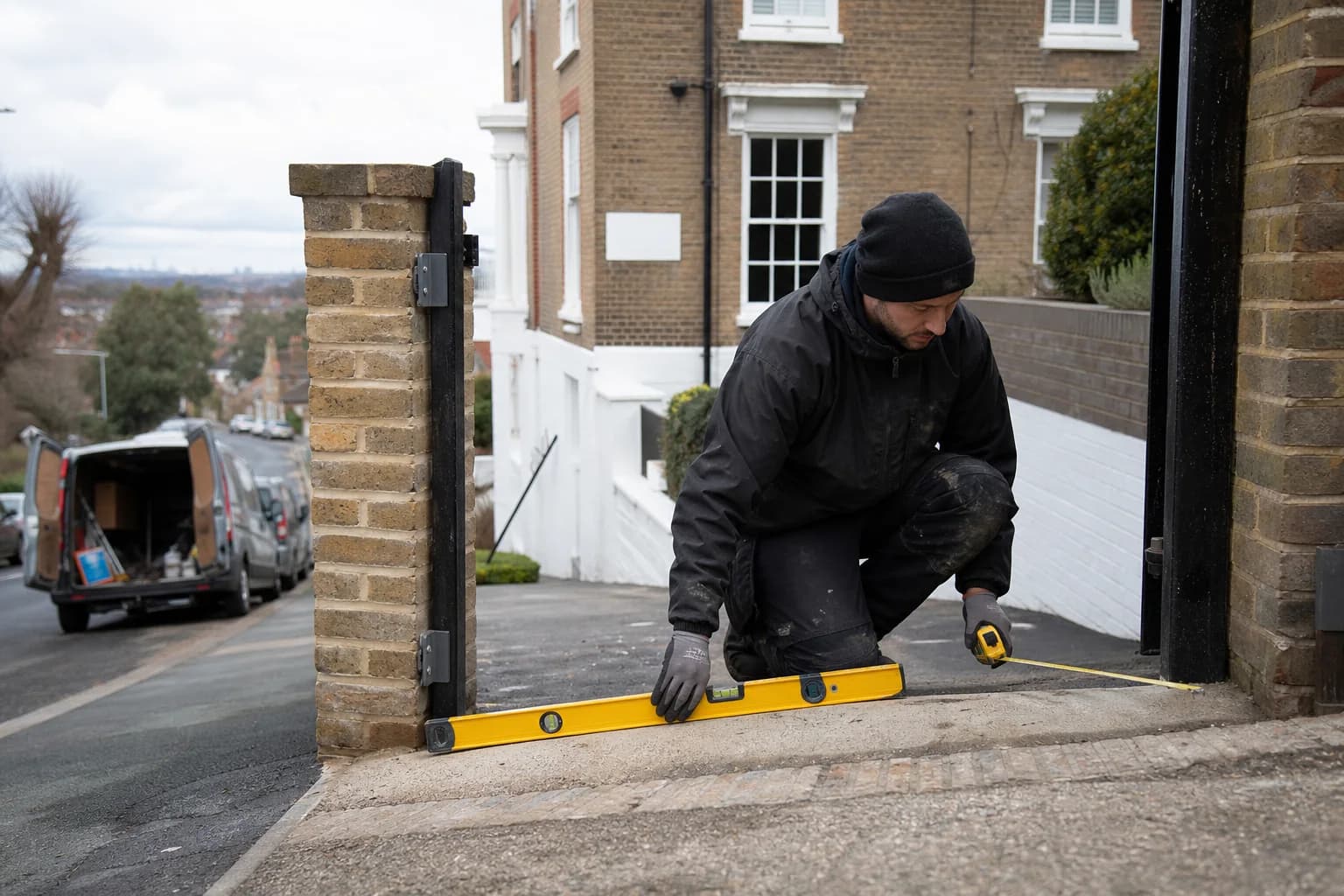

Use precise tools like digital levels and inclinometers to measure gradients accurate to fine margins across at least three reference points. This starts the site assessment for uneven ground. Laser levelling helps identify slope adjustment needs on London terrain.

Follow this numbered protocol for thorough evaluation:

• Scan the entire driveway with laser tools for a 3D profile.
• Conduct soil probe testing at a minimum of six points to check stability.
• Map gradients on a detailed scale to plan anchor points.
• Analyse visibility with clear sight lines over 30 metres.
• Calculate loads, requiring engineer sign-off for gates over 500kg.

Incorporate BS 8300 standards for accessibility on incline gates. Test for ground movement and drainage to avoid future issues. Geotechnical assessment ensures structural support.

Address retaining walls or terracing if needed for level mounting. Check utility access and emergency vehicle clearance. This prepares for custom fabrication and safe driveway installation.

Gate Type Selection

Cantilever sliding gates perform well on steeper slopes compared to standard swing gates. Select types based on slope compatibility for automated gates. Consider speed, cost, and best uses for uneven terrain.

Real London projects show success: a Kensington townhouse used cantilever gates on a 1:8 slope for smooth gate automation. A Richmond estate installed bi-folding on 1:9 terrain with remote control. Hydraulic swing worked on a 1:11 Hampstead driveway for reliability.

Match sliding gates to wide openings and swing gates to gentler inclines. Factor in gate motors and weatherproofing like powder coating. Ensure safety sensors and pedestrian access fit the site.

Foundation Preparation Techniques

Deep footings (1.5m minimum) with C35 concrete reduce settlement on London clay for stable sloping driveways. These foundations support automated gates on uneven terrain by addressing soil instability common in urban areas. Proper preparation prevents structural failure in gate installation projects.

Start with a geotechnical assessment to evaluate soil stability and pH levels. Use 450mm square footings designed for 50kN/m² bearing capacity, incorporating DPM membranes for moisture protection. Add frost protection to a 600mm depth to meet UK regulations and handle frost heave.

Incorporate geogrid reinforcement in the foundation layers for sloped surfaces. This enhances load distribution for heavy gate motors and swing gates. Combine with reinforcement bars in concrete pours to ensure longevity on hilly landscapes.

For sliding gates or cantilever gates, anchor points must align precisely with level mounting requirements. Brickwork pillars provide structural support, often clad in stone for aesthetic appeal in conservation zones. Always verify compliance with London building codes and planning permission.

Levelling Sloped Surfaces

Cut-and-fill method with 150kPa Terram geogrid creates level plinths accurate to ±5mm over 6m widths using Topcon RL-H5A rotary laser. This approach suits gradient driveways and ensures smooth operation for gate automation. Laser levelling tools guide precise excavation on uneven ground.

• Excavate to a 1:100 fall using laser-guided equipment for controlled slopes.
• Install a 300mm MOT Type 1 base with 95% Proctor compaction to build a stable sub-base.
• Set up formwork with 25mm rebated plinths for accurate concrete placement.
• Pour C40/50 concrete mixed with 10% PFA for enhanced strength and durability.
• Monitor the 28-day cure process to achieve full strength before gate mounting.

Integrate drainage considerations with a 1:150 cross-fall directing water to ACO channels. This prevents surface runoff and flood issues on sloped surfaces. Permeable paving around the driveway enhances water management for residential properties.

For hydraulic gates or bi-folding gates, verify plinth levels with an inclinometer post-curing. Custom fabrication may adjust for remaining incline in terrain challenges. Professional installers in London ensure compliance with BS EN 12453 safety standards.

Installation Steps for Sliding Gates

Sliding gates on 1:10 slopes require heavy-duty 100mm box section track embedded 200mm with electrofusion welded joints per BS EN 12453. These gates handle 1:8 gradients when tracks counter-weighted properly, making them ideal for sloping driveways in uneven London terrain. Installation time runs 2-3 days for 5m gates, focusing on track parallelism within ±3mm, roller loading up to 2.5kN, and infill foundation stability.

Begin with foundation preparation on sloped surfaces, excavating for concrete footings that account for soil stability and drainage considerations. Use laser leveling for precise slope adjustment, ensuring the track supports smooth operation of automated gates. Professionals often conduct geotechnical assessments for hilly landscapes in urban terrain.

Next, install the track and rollers, followed by gate alignment and motor programming. Test for obstacle detection and anti-crush mechanisms to meet UK regulations and London building codes. Include safety sensors and manual override for emergency access.

Final steps cover cabling, control panels, and integration with smart systems like app control or intercoms. Weatherproofing with powder coating ensures durability against London weather, while maintenance tips include regular alignment checks for longevity on gradient driveways.

Track and Roller Setup

Install 8m galvanized C-Track (Roger's Engineering 150x75mm) with 16 nylon rollers (80mm dia, 15kN load) spaced at 750mm centres. This setup provides structural support for sliding gates on uneven ground, countering the challenges of sloping driveways. Proper alignment prevents derailment on inclines.

Follow these numbered steps for precise track and roller setup:

• Set track datum with laser level to ±2mm/10m accuracy, essential for level mounting on sloped surfaces.
• Bed track in S4 resin mortar (1:3.5 cement:sharp sand) for firm anchorage and resistance to ground movement.
• Install 4No. catch posts (203x133 UC) as anchor points, securing them with reinforcement bars in concrete footings.
• Align rollers using 0.5mm nylon shims for smooth roller gate movement, checking torque at 120Nm motor limit.
• Test run 50 cycles unloaded to verify operation, adjusting for noise reduction and even load bearing.

For London terrain, incorporate slope compensation with inclinometer tools during setup. This ensures reliable gate automation on residential driveways or commercial properties with terrain challenges. Custom fabrication may adapt tracks for specific gradients.

After setup, apply corrosion resistance treatments like powder coating to galvanized components. Integrate safety features such as photocells and pressure edges, complying with BS EN 12453 for obstacle detection. Regular wear inspections maintain smooth operation over time.

Installation Steps for Swing Gates

Swing gates work best on sloping driveways with gradients no steeper than 1:15 to ensure smooth operation on uneven London terrain. Use trunnion hinges positioned above the mid-point of each leaf to prevent droop, especially for heavier automated gates. Follow a precise sequence: set posts first, install hinges next, then hang gates last, while complying with BS EN 12453 force limits for safety.

Swing gates over 3m per leaf require 40NB heavy-duty pivot hinges (25kN dynamic load) anchored into 600x600x1200mm concrete haunched footings. This setup provides structural support against wind loads and ground movement common in hilly landscapes. Experts recommend a geotechnical assessment before digging to check soil stability on gradient driveways.

Prepare the site with laser levelling and inclinometer checks for slope compensation. Incorporate drainage considerations like permeable paving to manage surface runoff and prevent flood issues in urban terrain. Test automation systems, including gate motors and safety sensors, after full assembly for obstacle detection.

For driveway installation on sloped surfaces, custom fabrication of steel posts ensures level mounting. Integrate remote control gates with app control for convenience, and add anti-crush mechanisms for child safety. Professional installers in London handle planning permission and UK regulations seamlessly.

Hinge and Post Anchoring

Use 32mm dia stainless steel dowel bars (500mm embedment) grouted into 1.2m deep pad foundations with 4No. 16mm holding down bolts per post. This method secures anchor points firmly against frost heave and ground movement on uneven ground. Start with foundation preparation, excavating and compacting backfill for stability.

• Install 450mm square x 1.5m deep post bases using C35 concrete, allowing 48 hours to cure before loading.
• Fabricate steel posts from S355 grade steel, 150x150mm section, with powder coating for corrosion resistance in damp London weather.
• Align trunnion hinges using 1:75 taper pins, checking with surveyor tools for precise vertical plumb on incline gates.
• Add brickwork cladding with Class B engineering bricks, leaving 10mm expansion joints filled with compressible filler for thermal movement.
• Conduct a load test to 5kN static to verify heavy duty hinges and pivot arms before gate automation setup.

Incorporate retaining walls or terracing if the gradient exceeds safe limits on residential driveways. Weatherproof all connections and add battery backup for gate motors. Regular alignment checks prevent wear on sloped surfaces.

For commercial properties or equestrian sites with large vehicles, reinforce with additional rebar in concrete footings. Pair with intercom integration and photocells for access control. London contractors ensure compliance with building codes and safety standards like emergency release mechanisms.

Power and Automation Systems

Sloped installations require IP67-rated motor enclosures with 24Vdc operation and battery backup providing 48hr autonomy per BS EN 60335. On sloping driveways in London terrain, power delivery faces unique challenges from cable runs over 20m on gradients. Voltage drop often exceeds safe limits, demanding careful system design for automated gates.

Solutions include using 2.5mm² SWA cable to minimise losses and pairing it with 10kVA UPS systems for stable supply. Solar augmentation via 300W panels suits uneven terrain, reducing grid reliance on hilly landscapes. These setups ensure gate motors perform reliably despite incline challenges.

Critical safety follows Category 2 obstacle detection per EN 12453, vital for driveway installation on sloped surfaces. Integrate anti-crush mechanisms and force testing to protect pedestrians and vehicles. For swing gates or sliding gates, this prevents accidents on gradient driveways.

Experts recommend combining these with smart gate systems for remote monitoring. Battery backups handle power cuts common in urban terrain, while solar options boost energy efficiency. Proper setup enhances driveway security without compromising smooth operation.

Handling Gradient Wiring

Use 4-core 2.5mm² steel wire armoured cable clipped at 300mm centres with 50mm service cover, surge protected to Cat C per BS EN 62305. This approach suits uneven London terrain, protecting runs along sloping driveways. It counters voltage issues from long distances on inclines.

Follow this numbered wiring protocol for safe gate automation:

• Route 25mm ducting along 1:100 fall to manage surface runoff and cable protection.
• Install 100A 30mA RCD consumer unit for fault protection in wet conditions.
• Motor control via 3-phase 415V Delta connection ensures power for heavy hydraulic gates.
• Add loop detectors with 2x 3m loops for vehicle sensing on gradient driveways.
• Fit safety photocells, Type 4 active infra-red with 30m range, for obstacle detection.
• Commission with force testing at 75N max for pedestrian safety per UK regulations.

For sliding gates or cantilever gates on uneven ground, ducting prevents water ingress. RCD units safeguard against shocks in rainy London weather. Delta connections suit gate motors needing high torque on slopes.

Loop detectors and photocells connect with control panels for fail-safe operation. Test forces dynamically to meet BS EN 12453 standards. This protocol supports longevity and durability in challenging hilly landscapes.

Frequently Asked Questions

What challenges do sloping driveways pose when installing automated gates on uneven London terrain?

Sloping driveways and how to install automated gates on uneven London terrain often face issues like misalignment of gate tracks, uneven weight distribution, and exposure to heavy rain causing erosion. In London’s variable clay soils and hilly areas like Hampstead or Highgate, custom engineering ensures stability and smooth operation.

How can you measure a sloping driveway accurately for automated gate installation on uneven London terrain?

To address sloping driveways and how to install automated gates on uneven London terrain, use laser levels and inclinometers to measure the slope angle (typically 1:6 to 1:12 ratios). Mark pivot points and track alignments from multiple vantage points, accounting for London’s frost-heave risks in winter.

What types of automated gates are best suited for sloping driveways on uneven London terrain?

For sloping driveways and how to install automated gates on uneven London terrain, cantilever or sliding gates with hydraulic rams excel due to their adaptability to inclines. Avoid swinging gates unless reinforced; opt for underground motors to handle London’s wet conditions and prevent debris interference.

Are special foundations required for automated gates on sloping driveways in uneven London terrain?

Yes, sloping driveways and how to install automated gates on uneven London terrain demand reinforced concrete footings or piled foundations to counter soil movement. In London boroughs with expansive clays, like those in South London, galvanised steel posts anchored 1.5m deep provide the necessary durability.

What automation systems work reliably on sloping driveways with uneven London terrain?

Sloping driveways and how to install automated gates on uneven London terrain benefit from heavy-duty operators like BFT or FAAC with torque sensors for incline adjustments. Integrate smart controls with obstacle detection, vital for London’s narrow access roads and pedestrian safety compliance under BS EN 12453 standards.

How much does it cost to install automated gates on sloping driveways in uneven London terrain?

Costs for sloping driveways and how to install automated gates on uneven London terrain range from £3,500 to £10,000, depending on gate size, materials (aluminium or steel), and site complexity. London-specific factors like planning permissions in conservation areas and VAT-exempt installations for security add 20-30% to budgets.
