Automatic Number Plate Recognition and Whether Your Driveway Is Ready for Hands Free Entry

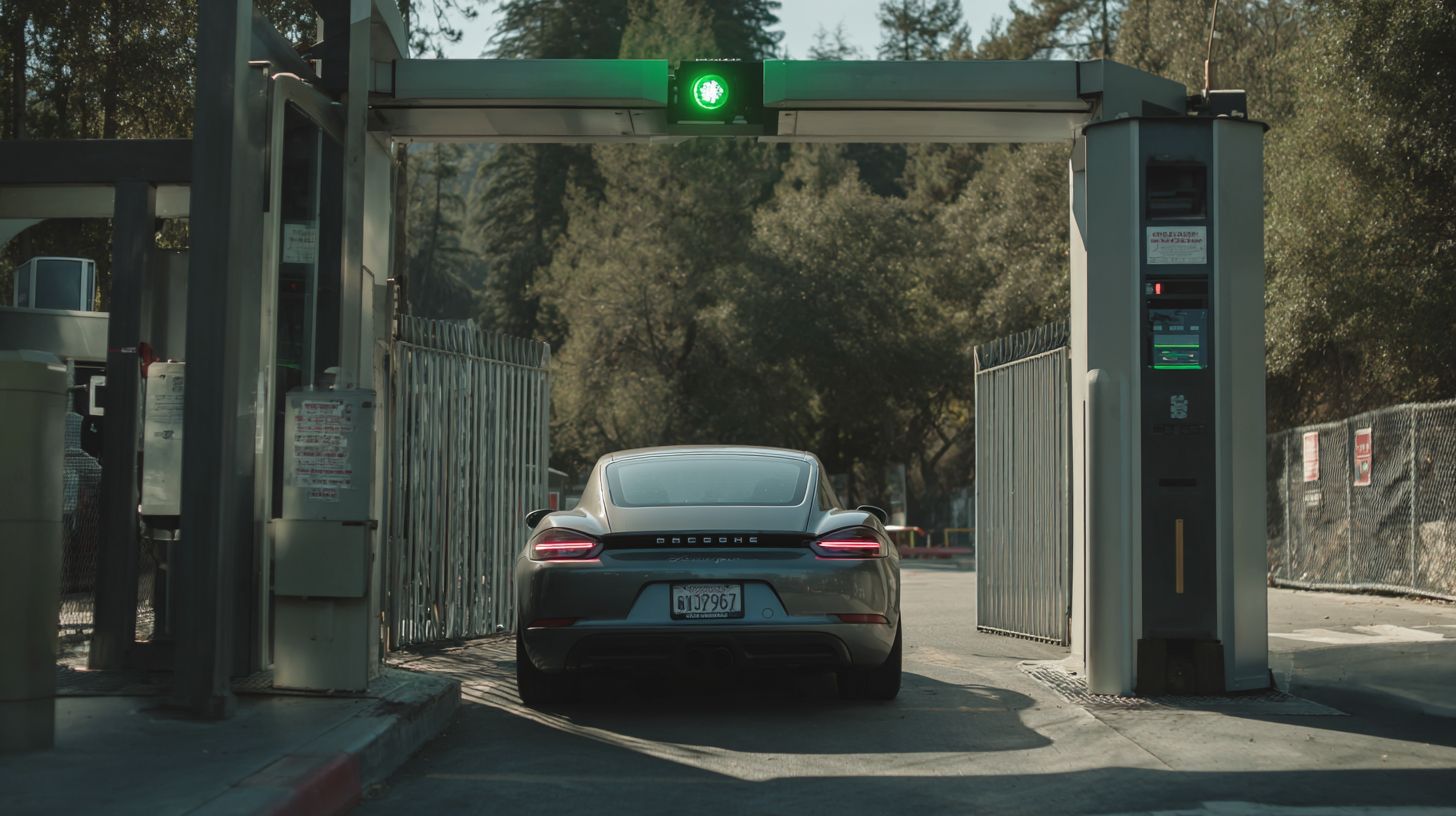

What is Automatic Number Plate Recognition (ANPR)?

Automatic Number Plate Recognition (ANPR) uses high-resolution cameras and OCR algorithms to identify vehicle license plates in real-time, enabling hands-free access control for driveways and gates.

This computer vision technology combines image capture with cameras at 1080p or higher, plate localization, character segmentation, and OCR recognition. It scans plates on cars entering a smart driveway, triggering automatic gate openers without remotes or keys. Systems like these replace traditional RFID or Bluetooth entry with reliable vehicle identification.

The process follows four key steps: first, image acquisition grabs a clear shot of the vehicle. Next, algorithms detect the plate's edges. Then, characters get segmented for individual analysis. Finally, deep learning models classify them for accurate reading.

For driveways, ANPR supports hands-free entry by whitelisting registered plates, ideal for swing gates or sliding gates. It works with retroreflective plates common in the UK and EU, handling various fonts and formats. Experts recommend pairing it with infrared cameras for night vision in low-light conditions.

How ANPR Technology Works

ANPR systems process license plates through four precise stages using computer vision algorithms originally developed for military reconnaissance.

In the first stage, a camera captures a 2MP or higher image at 30fps or more, ensuring sharp high-resolution imaging even in motion. Infrared enhancement at 940nm wavelength aids low-light performance, while weatherproof cameras resist rain or dirt on plates. This suits driveway surveillance where vehicles approach at typical speeds.

• Image acquisition: Licence plate camera grabs the frame.
• Plate detection: Edge detection via Haar cascades locates boundaries.
• Character segmentation: Divides plate into glyphs for analysis.
• OCR classification: CNN-based models read characters accurately.

Optimisation for retroreflective plates boosts recognition in varied lighting. Local processing on edge devices minimises latency for real-time gate opening, integrating with smart home systems like Home Assistant. For best results, mount the camera at optimal height with angle adjustments to capture multi-angle views and international plates.

Benefits of Hands-Free Driveway Entry

ANPR driveway systems reduce entry time from 15-20 seconds with manual gates to under 2 seconds. This eliminates fumbling for remotes entirely. Families enjoy smooth hands-free entry every time.

Security improves through precise vehicle identification via license plate recognition. Systems prevent tailgating by confirming only authorised plates. Number plate readers add a layer of driveway surveillance beyond traditional remotes.

Convenience shines for busy households. Multiple family vehicles enter at speed without stopping. Integrate with smart home setups for real-time alerts on app control.

Property owners see gains in access control and energy efficiency. Automatic gates close promptly after entry, unlike always-open systems. Consider ROI from less wear on gate motors over time.

Enhanced Security and Privacy

Automatic Number Plate Recognition offers high recognition accuracy for registered vehicles. It uses optical character recognition to scan plates reliably. This setup detects unauthorised access quickly.

Privacy features include data encryption and local processing options. Avoid cloud storage risks by choosing edge computing models. Systems comply with standards like GDPR for residential security.

False positives drop with AI enhancements and neural networks. Weatherproof cameras handle rain or dirt on plates. Night vision ensures clear reads in low light.

Pair with CCTV integration for full driveway surveillance. Audit logs track every event. This deters vandalism and supports tamper detection.

Convenience for Daily Use

Hands-free entry means no more remote entry struggles. Drive up, and the gate opener activates via plate scanning. Ideal for swing gates or sliding gates.

Family members or guests on a whitelist enter seamlessly. App control allows temporary access for visitors. Predictive entry anticipates arrivals from geofencing.

Works with iOS and Android mobile apps for management. Voice control via Alexa or Google Home adds ease. Time-based access suits different schedules.

Multi-angle recognition handles various plate positions. Supports UK plates, US plates, and EU formats. Damaged plates still process well with modern OCR.

Cost Savings and Property Value

Energy efficient operation cuts power use compared to constant-open gates. Solar powered options with battery backup reduce bills further. Fail-safe modes ensure reliability.

Less mechanical wear extends gate motor life. Manual override provides backup. Overall, systems offer strong ROI through durability.

Smart driveway features boost property appeal. Integrate with Home Assistant for broader automation. Experts recommend this for modern homes.

Choose one-time purchase over subscriptions for long-term savings. DIY installation suits tech-savvy owners. Professional setup ensures optimal mounting height and angle adjustment.

Key Components of an ANPR System

Complete ANPR systems require integrated hardware capturing 2MP+ images at 30fps with onboard processing for sub-1-second identification. These setups enable hands-free entry by scanning license plates in real time. Essential parts work together for reliable driveway access.

An IP66-rated camera like the Reolink RLC-810A handles rain and dust for 24/7 operation. Pair it with an IR illuminator at 850-940nm to read retroreflective plates at night. This ensures clear imaging even in low light.

The edge processor, such as NVIDIA Jetson Nano, runs optical character recognition locally to cut latency. Connect a gate controller relay to trigger swing gates or barrier arms automatically. Software like Plate Recognizer API, at $39/mo, handles plate localization and character segmentation.

Emphasise IP65+ weatherproofing and PoE connectivity for stable performance. These features support vehicle identification without wiring hassles. Test for multi-angle recognition to cover long driveways effectively.

Hardware Requirements

ANPR demands minimum 2MP cameras with motorized varifocal lenses (2.8-12mm) capturing plates at 15-25 feet in all lighting. Choose models with IEEE 802.3af PoE for simple Ethernet power and data. Minimum 1/2.8" sensors boost low-light performance for night vision.

Select cameras based on your setup. Long driveways need extended IR range, while budget options suit basic residential security. Always verify IP65+ ratings for outdoor exposure.

Mount at optimal height with angle adjustment for plate visibility. Pair with infrared cameras to handle dirt or damaged plates. This setup minimises false positives in variable conditions.

Assessing Your Driveway Layout

Optimal ANPR performance requires 15-25° downward camera angle capturing entire plate at 10-20 feet distance. Begin by measuring your driveway to ensure it meets basic requirements for hands-free entry. This step prevents common issues like failed plate scanning.

Use a tape measure for the approach distance, aiming for at least 15 feet before the gate. Check the gate swing radius for clear space, especially with swing gates. Verify minimum width of 10 feet per lane to allow smooth vehicle passage.

Lighting conditions matter greatly, so test for 300+ lux during daytime across the capture zone. Examine plate angles, keeping skew under 20° for reliable optical character recognition. Poor angles lead to false positives in license plate recognition.

• Measure approach distance (minimum 15 feet from camera to gate).
• Confirm gate swing radius clearance (no obstructions within swing path).
• Assess lighting (300+ lux daytime, add infrared for night vision).
• Test plate angles (maximum 20° skew, use a protractor for accuracy).

Include a simple angle diagram: imagine a side view with the camera tilted 15-25° down, plate at 10-20 feet, skew line under 20°. For driveway readiness, note minimum 10-foot lane widths support most vehicles, aiding vehicle identification and automatic gate operation.

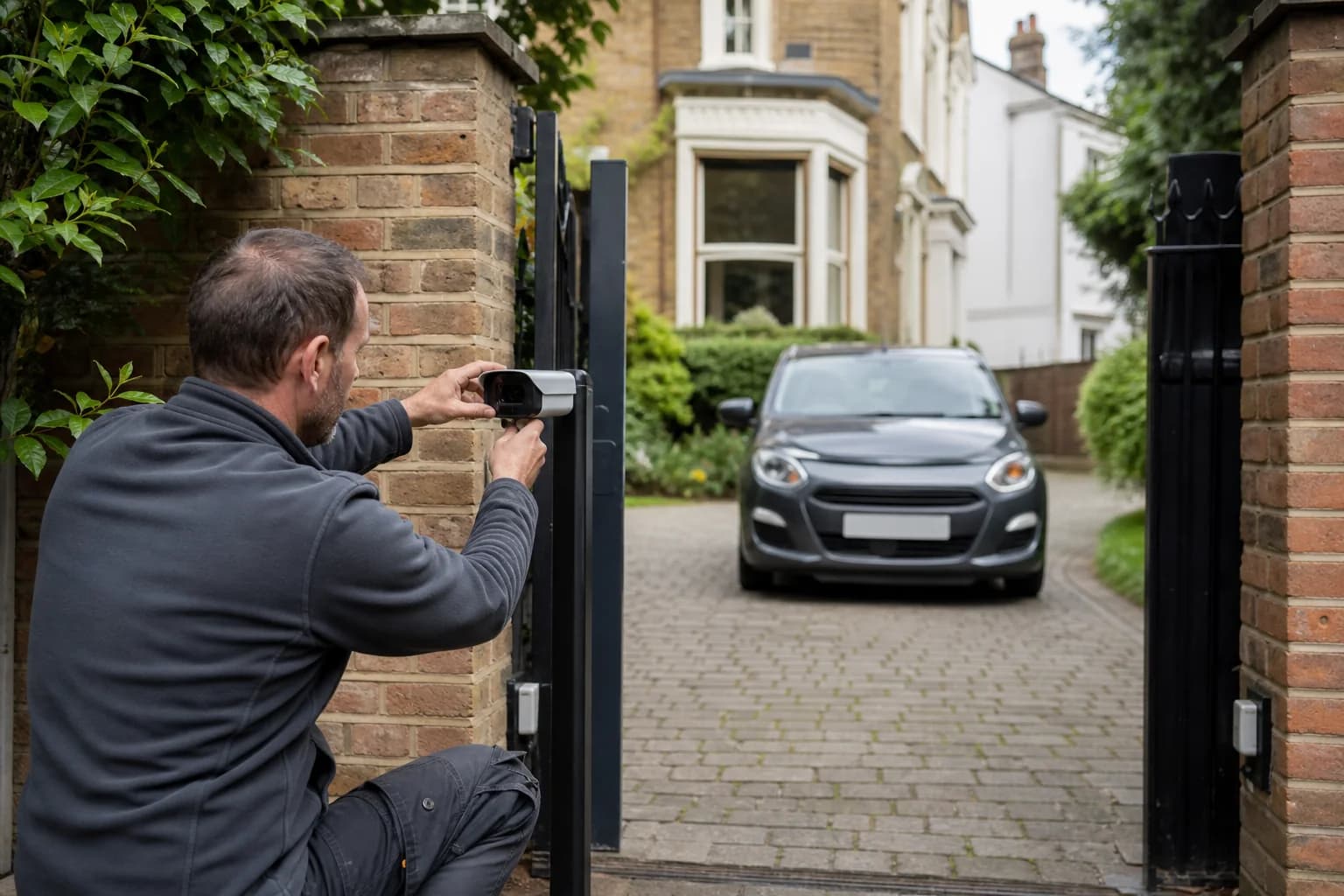

Optimal Camera Placement

Mount ANPR cameras at 8-10 feet height, 15° downward angle, ensuring plates fill 25-40% of frame for maximum OCR accuracy. Position the license plate camera 18-25 feet before the gate on a wall or pole. This setup supports smart driveway access with reliable plate localization.

Choose a 2.8-4mm lens for 40° field of view, capturing retroreflective plates clearly. Adjust tilt and pan to achieve zero plate rotation, vital for character segmentation. Avoid the common mistake of mounting too high over 12 feet, which distorts images.

• Position camera 18-25 feet before the gate on a stable wall or pole.
• Install 2.8-4mm lens for 40° FOV, suiting most residential driveways.
• Adjust tilt/pan for zero plate rotation, centring the capture zone.
• Test with 5 sample vehicles under varying lighting conditions.
• Fine-tune via app like Plate Recognizer mobile calibration for precision.

For weatherproof cameras with night vision, ensure Ethernet or WiFi connectivity for real-time alerts. Test multi-angle recognition for tilted or international plates like UK or EU formats. Proper placement boosts recognition accuracy, reducing latency in gate openers.

Environmental Factors to Consider

ANPR accuracy drops in adverse weather without proper IP67-rated hardware and dual-spectrum IR illumination. Rain, snow, and glare challenge license plate recognition systems in outdoor setups like driveways. Proper preparation ensures reliable hands-free entry for automatic gates.

Rain reduces contrast on retroreflective plates, making optical character recognition harder. Use 850nm IR illumination to cut through water droplets and maintain clear imaging. This setup supports vehicle identification even during heavy downpours.

Snow often obscures plates, blocking the license plate camera view. A heated lens option melts ice buildup quickly, keeping the number plate reader operational. Pair it with weatherproof cameras for year-round driveway access.

Direct sunlight glare washes out high-resolution imaging during peak hours. Polarized filters on the infrared camera reduce reflections from plates. Dust buildup also harms performance, so auto-wiper systems clear the lens automatically.

A Norwegian Public Roads study showed high accuracy with proper environmental hardening. These measures boost recognition accuracy for smart driveways, reducing false positives in residential security setups.

Weather and Lighting Challenges

Low-light conditions challenge ANPR systems; active IR with smart exposure control helps maintain performance after sunset. Dawn, dusk, rain, and fog each impact plate scanning differently. Address them with targeted solutions for reliable vehicle detection.

Use a solutions table to match challenges with fixes for your driveway surveillance setup.

Meet lux level requirements like 0.01lux for colour imaging and 0lux with IR for night vision. Wide Dynamic Range cameras handle glare on swing gates or sliding gates. Hydrophobic coatings repel water, ensuring clear views in wet conditions.

For fog, thermal overlays detect heat signatures alongside plate localization. Integrate these with edge computing for low latency in real-time alerts. Test in your local lighting conditions to optimise multi-angle recognition for UK plates or EU formats.

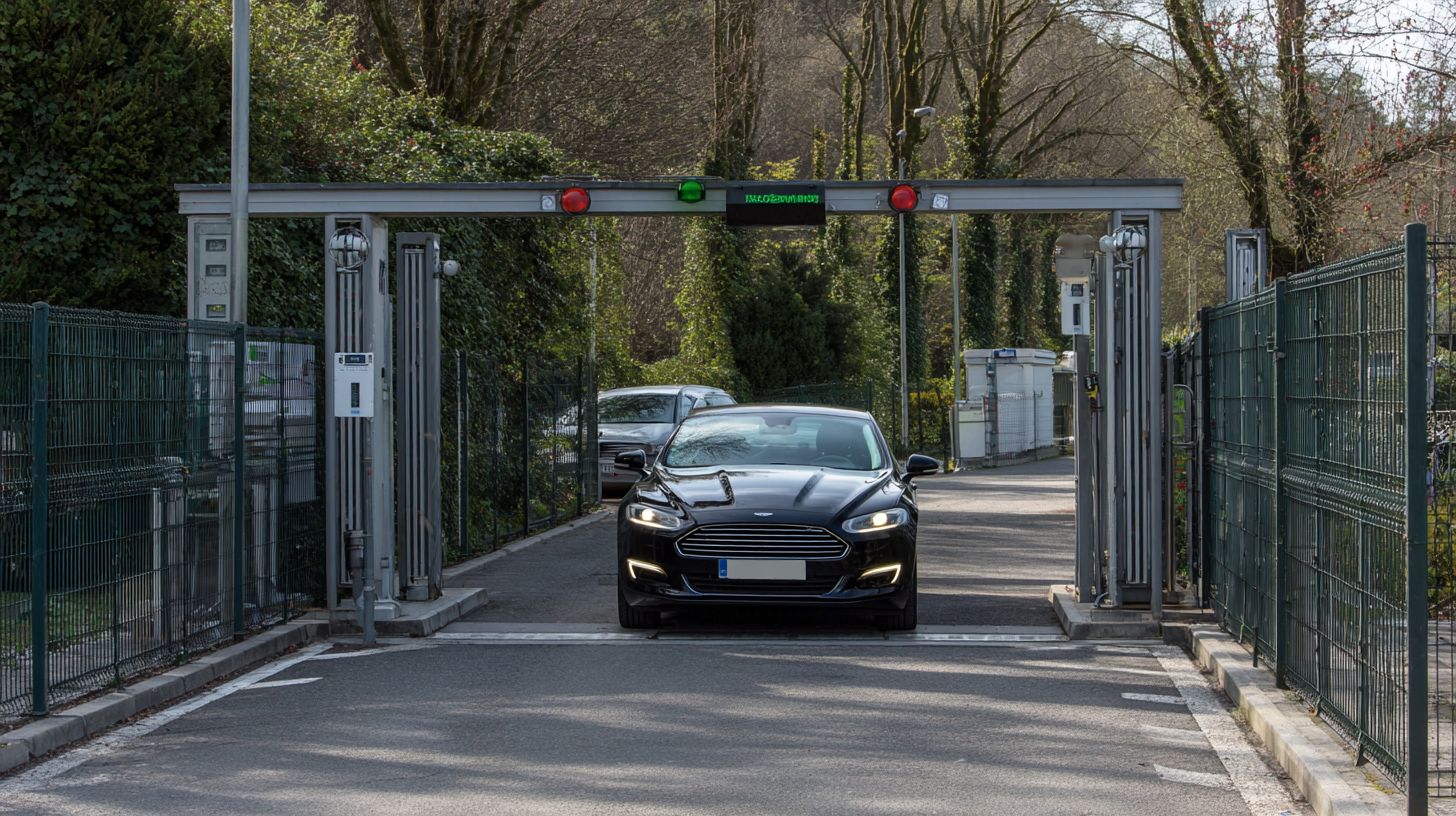

Vehicle and Plate Compatibility

Modern ANPR supports 95% of global plate formats including US, EU, UK, and Australia with custom font training for regional variations. This ensures license plate recognition works across diverse vehicles for reliable hands-free entry. Systems use optical character recognition to scan plates accurately.

Key factors like plate localization and character segmentation handle different designs. For instance, US plates vary by state with unique fonts and colours. EU formats include blue stripes on some nations' plates.

A compatibility matrix outlines regional support and notes on accuracy challenges. Training custom plates requires at least 50 sample images per variation for optimal performance. Deep learning helps correct errors from damaged plates.

Owners with personalised or vintage plates should upload clear photos from multiple angles. This trains the number plate reader to recognise non-standard formats. Weatherproof cameras with infrared improve results in poor lighting.

Installation and Setup Process

Complete ANPR installation takes 2-4 hours for DIY. You mount the camera, run Cat6 Ethernet cable, configure Plate Recognizer cloud API, and test the whitelist. This process enables hands-free entry for your driveway.

Follow these numbered steps for a smooth setup. Each step includes estimated time and key tips. Proper execution ensures license plate recognition accuracy and reliable automatic gate operation.

• Mount license plate camera at 9ft height (30 minutes). Use a sturdy pole or wall bracket for the weatherproof camera. Adjust angle for optimal plate visibility.
• Run PoE cable to NVR or switch (60 minutes). Secure the cable along the driveway to avoid damage. This provides power and network connectivity.
• Install gate relay (30 minutes). Connect it to your gate motor for swing gate or sliding gate control. Test basic relay function before full integration.
• Configure software via web interface (45 minutes). Set up OCR settings for UK plates and whitelist trusted vehicles. Enable night vision for low-light conditions.
• Test with 10 vehicles and calibrate (30 minutes). Drive vehicles through at normal speed. Fine-tune for recognition accuracy and reduce false positives.

Avoid common pitfalls like reverse polarity on power connections. Check for insufficient voltage which can cause intermittent failures. Always verify wiring before powering on.

Wiring Diagram Overview

Understanding the wiring diagram simplifies ANPR setup. It shows connections from the infrared camera to the NVR, switch, and gate relay. Use Cat6 for Ethernet connection to support high-resolution imaging.

Label all wires during installation. This helps with troubleshooting later. Ensure IP rating on components for outdoor durability.

For multi-camera setups, daisy-chain PoE switches. This supports scalability in commercial parking or driveway surveillance.

Common Pitfalls and Troubleshooting

Reverse polarity often damages relays during gate relay installation. Double-check positive and negative terminals with a multimeter. It prevents costly replacements.

Insufficient voltage leads to poor night vision or failed plate scanning. Use a dedicated PoE injector if the switch falls short. Test voltage at the camera end.

• Misaligned camera causes plate localization errors. Re-adjust mounting height and angle.
• Poor lighting affects OCR accuracy. Add supplemental lights for non-retroreflective plates.
• Software misconfiguration triggers false positives. Update firmware and recalibrate whitelist.

Regular maintenance like cleaning the lens improves recognition accuracy. Check support forums for gate motor compatibility issues. This keeps your smart driveway reliable.

Costs and Maintenance Overview

DIY ANPR systems start at $599 (Reolink camera + Plate Recognizer Pro), professional installs at $1,800 with 24-month ROI via security enhancement. These costs cover essential components for hands-free entry in your driveway. Budgeting helps decide between self-setup or expert help.

Hardware forms the core expense, including license plate cameras with infrared for night vision. Software subscriptions enable optical character recognition and cloud processing. Installation varies widely based on DIY skills or pro labour.

Annual maintenance includes lens cleaning at $50, free firmware updates, and cloud storage at $120 per year. Over three years, expect hardware lifespan limits, pushing replacement costs. Regular checks keep recognition accuracy high against dirt or weather.

Subscription choices matter for long-term savings. Plate Recognizer at $468 per year offers strong vehicle identification for residential use. Compare to OpenALPR Cloud at $720 yearly for advanced features like multi-angle plates.

Three-Year Lifespan Analysis

A typical ANPR setup lasts three years before major upgrades. Factor in hardware wear from outdoor exposure and software evolution. Plan for weatherproof camera replacement to maintain driveway surveillance.

Initial DIY outlay of $599 plus subscriptions totals around $2,000 over three years. Pro setups near $5,000 include wiring and calibration. Savings come from security enhancements like real-time alerts reducing manual checks.

Maintenance adds $510 over three years for cleaning and storage. Firmware updates stay free, but lens quality degrades, affecting plate scanning. Test night vision regularly to catch issues early.

ROI builds through hands-free entry convenience and theft deterrence. Experts recommend budgeting 20% extra for surprises like power supply failures. This ensures reliable automatic gate operation.

Subscription Comparison

Choose subscriptions based on your smart driveway needs. Plate Recognizer at $468 yearly suits basic license plate recognition with good OCR for UK plates. It supports local processing to ease privacy concerns.

OpenALPR Cloud costs $720 per year for robust features like damaged plates handling. Both offer API integration with gate motors for seamless access. Pick by volume of vehicle detection.

• Plate Recognizer: Lower fee, edge computing focus.
• OpenALPR: Higher accuracy for international formats.
• Both: Mobile app control, event logs.

Evaluate against one-time purchases for open source ANPR. Subscriptions provide updates and support, vital for recognition accuracy. Test trials to match your driveway conditions.

Frequently Asked Questions

What is Automatic Number Plate Recognition and Whether Your Driveway Is Ready for Hands Free Entry?

Automatic Number Plate Recognition (ANPR) is a technology that uses cameras and software to automatically detect and read vehicle licence plates, enabling hands-free entry systems for driveways. "Whether Your Driveway Is Ready for Hands Free Entry" refers to assessing if your driveway setup—such as lighting, camera placement, and gate compatibility—meets the requirements for seamless ANPR integration, allowing gates to open automatically upon recognising your registered plate without needing remotes or apps.

How does Automatic Number Plate Recognition work for hands-free driveway entry?

Automatic Number Plate Recognition scans incoming vehicles' plates in real-time using high-resolution cameras equipped with OCR (Optical Character Recognition) software. When a registered plate is detected, it triggers the driveway gate to open automatically. To determine if your driveway is ready for hands-free entry, ensure clear visibility (no obstructions), adequate lighting, and proper camera angles for reliable plate reading day or night.

What are the key requirements to check if your driveway is ready for Automatic Number Plate Recognition hands-free entry?

To verify if your driveway is ready for Automatic Number Plate Recognition and hands-free entry, evaluate factors like sufficient lighting (LED or infrared for low-light conditions), unobstructed camera views (mounted 2-3 metres high), stable internet/power supply for the system, and compatibility with your existing gate motor. Poor conditions like glare, dirt, or narrow approaches can hinder performance.

Is Automatic Number Plate Recognition secure for hands-free driveway entry?

Yes, Automatic Number Plate Recognition for hands-free entry is secure when implemented with encryption, access logs, and whitelisting of approved plates only. Assess your driveway readiness by ensuring the ANPR system supports remote management via apps and alerts for unrecognised vehicles, preventing unauthorised access while maintaining convenience.

What are the costs involved in setting up Automatic Number Plate Recognition for hands-free driveway entry?

Costs for Automatic Number Plate Recognition systems vary from $500-$2000 for basic camera and software kits, plus $300-$1000 for gate integration. Before investing, check if your driveway is ready for hands-free entry by testing visibility and compatibility—professional installation ensures optimal performance and may qualify for smart home rebates.

Can Automatic Number Plate Recognition be used with existing driveway gates for hands-free entry?

Absolutely, most modern gate motors from brands like LiftMaster or BFT work together with Automatic Number Plate Recognition via relays or APIs. Determine if your driveway is ready for hands-free entry by confirming your gate's compatibility, electrical setup, and plate readability—upgrades like weatherproof cameras make it ideal for residential use.
